    Home / trucks / Trucks Ace AF1 77 Polished (Set of 2pcs)

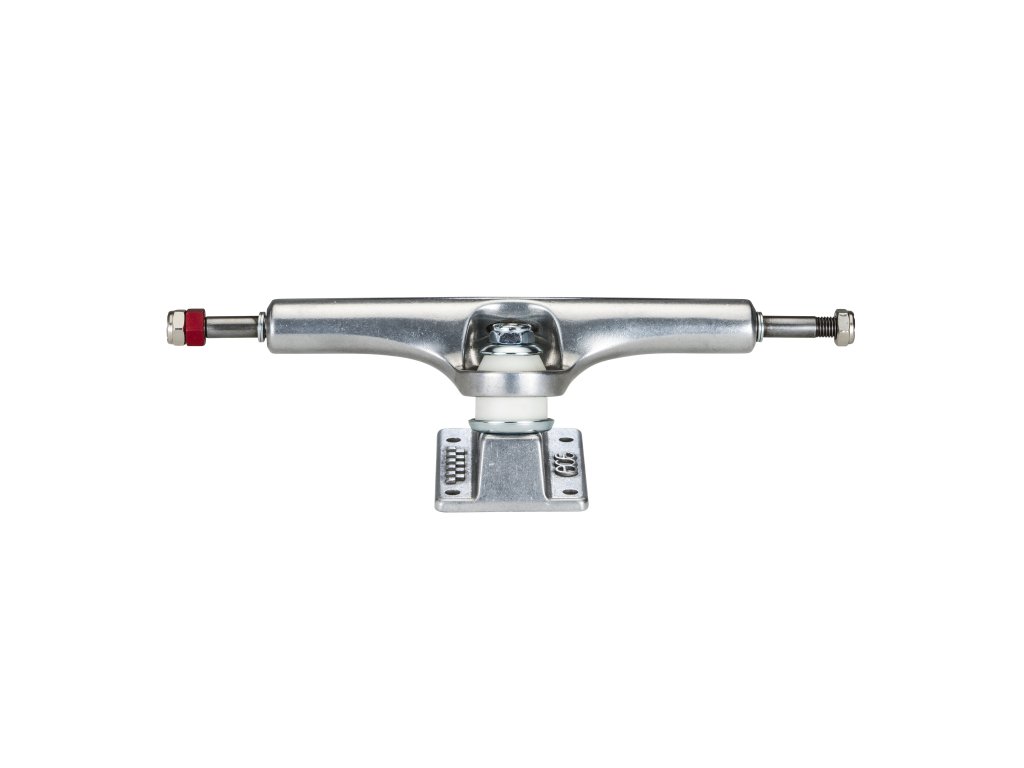

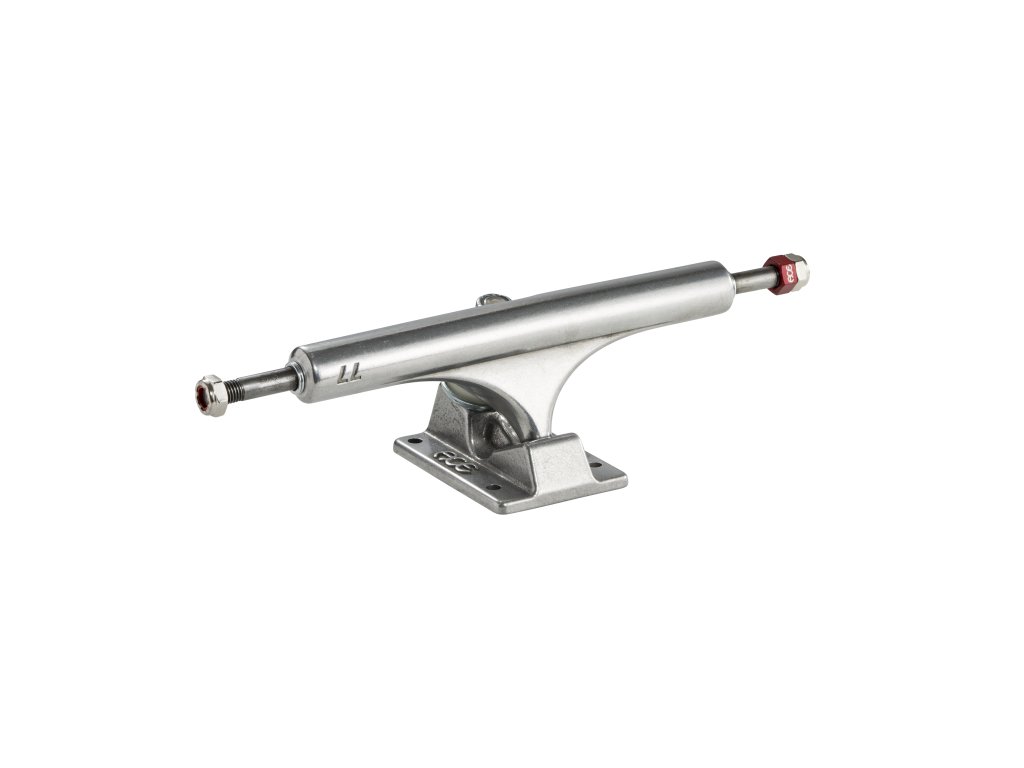

    Trucks Ace AF1 77 Polished (Set of 2pcs)

    Code: TR_21107
    Brand: ACE trucks
    tr 21107 AF1 Silver 77 H flat
    In stock
    The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths. The Ace AF1, tomorrow’s technology today!

    Detailed information

    Product detailed description

    AF1 77 Specs:
    Axle width: 9.5” (241mm)
    Hanger width: 6.9” (175mm)
    Truck height: 2.1” (53mm)
    Fits boards: 9.25” - 9.75”
    Weight: 15 oz.
    Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method. True T6 heat-treated baseplates and hangers. SAE 4140 steel alloy axles, oversized to eliminate bearing wobble. Patent pending rethreading axle nuts - no more damaged axle ends! Durable Hand-poured 96a urethane pivot bushings for smooth as silk response. Refined bushing and cup washer shapes for a cleaner turn. Machine-faced hanger ends for precise bearing contact.

    Additional parameters

    Category: trucks
    Weight: 0.864 kg
    Size of trucks: 9.5"
